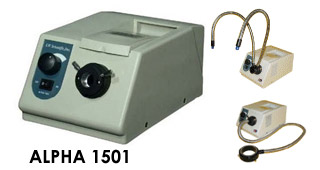

Illuminator ALPHA 1501

Product Features

  • Streamline facade
  • New design for easy replacing lamp
  • Adopt over loading protect set
  • Brightness > 23000LU

The new addition to our line of illumination equipment is the Alpha 1501. It features “cold” illumination through filtration and a series of user defined colored filters. The cold light source has high intensity fiber optic illumination and accessories that allow you to position your light for best possible viewing. The original design shown above features a sturdy small footprint through integrated solid state circuitry. The 150 watt lamp is equipped with a variable control. The ALPHA 1501 provides the best illumination for high brightness & low temperatures.

POWER INPUT

90V-265V

POWER OUPUT

5V-21V

POWER CONSUMPTION

150W

DIMENSIONS

210mm×170mm×130mm

FILTER

Filter Red/Blue/Green/Yellow

REFLECTOR LAMP

21V/150W

FIBER ADAPTER

F20

OPTION

Twin-Arm Fibre

Ring Fibre

SPECIFICATION

2- F5X500mm

F55XF10X1000mm

OPTION: Microscope Adapter for Ring Fiber

ADAPTER SPECIFICATION

M44X0.75

M48X0.75

M50X0.75

M54X0.75

Printer Friendly Version


Illuminator ALPHA NEXT

Product Features

  • Streamline facade
  • New design for easy replacing lamp
  • Built-in Blue filter
  • Brightness > 23000LU

The newest addition to our line of illumination equipment is the Alpha NEXT. It features “cold” illumination through filtration. The cold light source has high intensity fiber optic illumination and accessories that allow you to position your light for best possible viewing. The 150 watt lamp is equipped with a variable control. The ALPHA NEXT provide the best illumination for high brightness & low temperature with light weight.

POWER INPUT

220V

POWER OUPUT

5V-21V

POWER CONSUMPTION

150W

DIMENSIONS

270mm×150mm×130mm

FILTER

Blue

REFLECTOR LAMP

21V/150W

FIBER ADAPTER

F20

OPTION

Twin-Arm Fibre

Ring Fibre

SPECIFICATION

2- F5X500mm

F62XF8X550mm

OPTION: Microscope Adapter for Ring Fiber

ADAPTER SPECIFICATION

M44X0.75

M48X0.75

M50X0.75

M54X0.75

Printer Friendly Version


Illuminator FA-100C

Product Features

  • Streamline facade
  • New design for easy replacing lamp
  • slim design
  • Intensity 500,000 lux

The newest addition to our line of illumination equipment is the FA-100C. It features “cold” illumination through filtration with slim design for machine vision. The cold light source has high intensity fiber optic illumination and accessories that allow you to position your light for best possible viewing. The 100 watt lamp is equipped with a variable control. The FA-100C provide the best illumination for high brightness & low temperature with light weight.

Power Input

AC 100V – 240V

Power Output

12 V

Power Consumption

100 W

Dimensions

H115 x W74 x D233 mm

Reflector Lamp

JCR 12V 100W

Attach Fiber Light Guide

Straight light guide SL-B5-500,750,1000,1500,2000,3000 DL-B5 -500,750,1000,1500,2000,3000

Ring light guide HL-28-1000,1500,2000,3000 HL-55-1000,1500,2000,3000
