Eyepiece CCD Mini-Vid

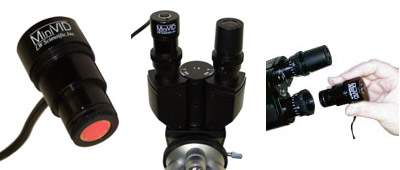

Mini-Vid, The innovative eyepiece camera s lips into any microscope eye tube for crisp imaging. The Mini-Vid camera is custom fit for any microscope eye tube.
Signal system |
PAL |
Image Sensor |
1/3" Color VGA CMOS Image Sensor |
Effective pixels |
620(h) x 580(v) |
Sensitivity |
5 lux |
Output |
Composite video (RCA) |
Power |
9V DC < 1 amp include 220 V AC adaptor |
Dimension |
Length: 2.5” (63mm), Diameter: 1.25” (32mm) |
Weight |
85 g |
Lens |
Miniature macro lens included |
Microscope compatable |
Fits standard 23 mm eye tube, 30 mm adaptor include |
