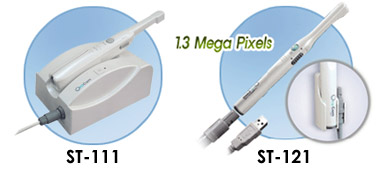

Oralscope Oracam Series

Product Features

  • More compact, slimmer & ergonomic design of the camera head makes it easy to capture the images of molars and even teeth of child.
  • Wide field of view(67). The various range of image focusing such as full face, full mouth, intraoral image can be captured by smooth focus control knob.
  • Easy to capture any image with the freezing button on probe efficiently.
  • When the probe is removed from holder, power turns "on". And when probe is back on holder, power turns "off". Anti-Fog function.

Model

ST-111

ST-121

Image Sensor

SONY Super HAD CCD™

SONY Super HAD CCD™

Signal System

PAL

PAL

Effective Pixels

470,000

1.3 M

Signal Processing

Digital Signal Processor(DSP)

Digital Signal Processor(DSP)

Power Supply

180-260VAC, 47-63Hz

5VDC via USB port

Memory Function

4 Frame Memory Type

Capture function

Output Signal

Composite, S-video

USB

Illumination

High luminance white LED : 4EA

High luminance white LED : 4EA

Angle of view

67 deg

67 deg

Camera Cable

2.2 M

2.2 M

Weight of Camera Probe

Approx. 65g.

Approx. 65g.
