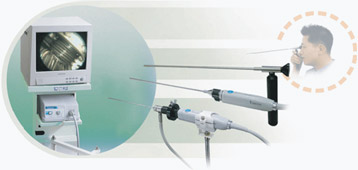

Bore Scope ICS
It is devised to examine invisible area of object without dismantling or cutting the various type of machinery for industrial use. It performs as visual testing that is part of Non-Destructive Test.
Product Features
- The image quality is excellent due to united lens
- Three type of diameter applied to each fields.
- Image distraction can be avoided due to rod index lens
- Saving time and personnel expenses
- Excellent durability due to stainless steel tube structure
- Provide 2 type of bore-scopes, Universal type and P300A series for select
Main Unit |
Lamp |
12V/100W Halogen Lamp |
Light Intensity |
Adjustable (0-100W) |
Dimension |
209(W) x 250(D) x 101(H)mm |
Power Supply |
110/220 VAC, 50/60Hz |
Output Signal |
Composite:1EA, S-Video:1EA |
Frame Capture |
Memory Type |
4 Frame |
Nomemory Type |
- |
Memory Display |
4 Full Frame, quad display(Memory Type) |
Camera |
Image Sensor |
1/3" SONY Super HAD CCD™ |
Pixel |
NTSC |
768(H)*494(V) |
PAL |
752(H)*582(V) |
Horizontal Resolution |
460 TV Line |
Signal Process |
Digital Signal Process (DSP) |
AGC/White Balance |
Auto |
Min lllumination |
2 Lux |
ELC |
ON |
Power Cable & Optic Fiber |
2M |
Lens |
Universal Type (Helios) |
Dia. 6mm |
Selectable Lens length 511,410,330,228,125 mm. |
Dia. 4mm |
Selectable Lens length 511,410,330,228,125 mm. |
Dia. 3mm |
Selectable Lens length 210,118,72 mm. |
P300A Camera + P304SA
P300A Camera + P304SB |
Dia. 3 mm L 50mm
Dia. 3 mm L 96mm |
P300A Camera + P304MA
P300A Camera + P304MB |
Dia. 4 mm L 142mm
Dia. 4 mm L 243mm |
P300A Camera + P304HA |
Dia. 6 mm L 243mm |
