Zoom Lens MS-501

MS-501 is a slim built-in zoom lens for machine and very compact designed with excellent resolution and long working distance of best seller.

Objective

0.75x ~ 4.5x Zoom

Working Distance

90mm

Weight

400g

Flange-back

17.526mm

Operation

Manuel rotating system

Diaphragm

w/iris diaphragm for brightness

Mount

C-mount

Printer Friendly Version

Zoom Lens MS-501S

MS-501S is the shorter version of standard 6X zoom tube.

Magnifcations

0.75x ~ 4.5x

Working Distance

90mm

Camera Mount Flange-back

17.526mm

Zoom Mechanism

Manual / Zoom Ring Rotation

Camera Mount

C-mount

Weight

385g

Printer Friendly Version

Zoom Lens SKL0745

Product Features

  • In focus and non-flash in zoom course
  • The range of objective zoom magnification: 0.7X ~ 4.5X
  • The measurement to match between the support and the main body：35mm, add the connecting ring is 45mm
  • 0.5X ~ 1X standard outfits CCD adapters to be selected
  • Adjusting LED ring illuminators and kinds of stands to be selected(CCD is selected to buy)

SKL0745 miniature zoom monocular video microscope systems, are characterized by unique optical system, precise machinery appearance, sharp micro image. It can be used in electric equipments, semiconductor, LCD, LED etc for observing digital images, checking-up and survey. We can observe different objects with each LED illumination.

Objective

CCD adapter

0.5X

1X

Optical magnification

0.35X ~ 2.25X

0.7X ~ 4.5X

Field of video(mm)

10.3X13.7 ~ 1.6X2.13

5.14X6.86 ~ 0.8X1.07

Working distance(mm)

90

Magnification range of zoom body 0.7X ~ 4.5X

Printer Friendly Version

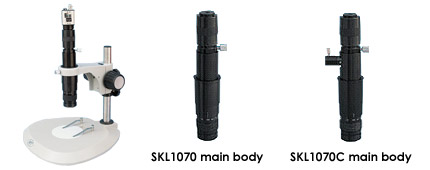

Zoom Lens SKL1070

Product Features

  • Zoom objective, kinds of magnifications, and click-stops capability
  • C-mount, have coaxial illumination (SKL1070C)
  • The measurement to match between the support and the main body is 45mm
  • The diameter of the round post is 25mm
  • Kinds of main body、auxiliary illuminators and stands to be selected (CCD is selected to buy)

Objective

CCD adapter

0.5X

1X

0.5X

Optical magnification

0.25X ~ 1.75X

0.5X ~ 3.5X

Field of video(mm)

14.4X19.2 ~ 2.1X2.7

7.2X9.6 ~ 1X1.4

Working distance(mm)

195

0.7X

Optical magnification

0.35X ~ 2.45X

0.7X ~ 4.9X

Field of video(mm)

10.3X13.7 ~ 1.5X2

5.1X6.9 ~ 0.7X1

Working distance(mm)

145

1X

Optical magnification

0.5X ~ 3.5X

1X ~ 7X

Field of video(mm)

7.2X9.6 ~ 1X1.4

3.6X4.8 ~ 0.5X0.7

Working distance(mm)

115

2X

Optical magnification

1X ~ 7X

2X ~ 14X

Field of video(mm)

3.6X4.8 ~ 0.5X0.7

1.8X2.4 ~ 0.26X0.34

Working distance(mm)

35

Magnification range of zoom body 1X ~ 7X

Printer Friendly Version

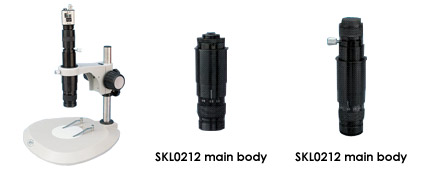

Zoom Lens SKL-Low

Product Features

  • Zoom objective, kinds of magnifications
  • C-mount
  • The measurement to match between the support and the main body is 45mm.
  • The diameter of the round post is 25mm.
  • Kinds of main body, auxiliary illuminators and stands to be selected. (CCD is selected to buy)

Objective

Model: SKL0212

0.5X

Optical magnification

0.1X ~ 0.6X

Field of video(mm)

36X48 ~ 6X8

Working distance(mm)

195

0.7X

Optical magnification

0.14X ~ 0.84X

Field of video(mm)

25.7X34.3 ~ 4.3X5.7

Working distance(mm)

145

1X

Optical magnification

0.2X ~ 1.2X

Field of video(mm)

18X24 ~ 3X4

Working distance(mm)

115

2X

Optical magnification

0.4X ~ 2.4X

Field of video(mm)

9X12 ~ 1.5X2

Working distance(mm)

35

Magnification range of zoom body 0.2X ~ 1.2X



Objective

Model: SKL0318

0.5X

Optical magnification

0.15X ~ 0.9X

Field of video(mm)

24X32 ~ 4X5.3

Working distance(mm)

195

0.7X

Optical magnification

0.21X ~ 1.26X

Field of video(mm)

17.1X22.9 ~ 2.9X3.8

Working distance(mm)

145

1X

Optical magnification

0.3X ~ 1.8X

Field of video(mm)

12X16 ~ 2X2.7

Working distance(mm)

115

2X

Optical magnification

0.6X ~ 3.6X

Field of video(mm)

6X8 ~ 1X1.3

Working distance(mm)

35

Magnification range of zoom body 0.3X ~ 1.8X
