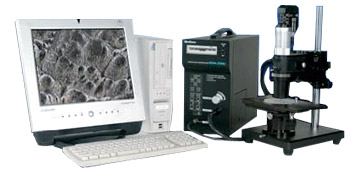

High-mag Zoom Microscope SDZ2
Product Features
- A combination of highly sophisticated lens technology, illumination technology and Digital camera technology has enabled high resolution, high magnification and Multiple functions in one time.
- A variety of illuminations are available.
- Observation at Normal/Dark Ground/Polarized/Nomarski is possible.
- Switching from one mode to the other can be quickly done.
- Hard copy can be easily obtained with printer.
Type No. of Objective |
ZCF5 |
ZCF15 |
ZCF50 |
ZCF70 |
Magnification (19" monitor) |
30-300x |
90-900x |
300-3000x |
420- 4200x |
Magnification (15" monitor) |
25-250x |
75-750x |
250-2500x |
350- 3500x |
Actual View Field (mm) |
|
|
|
|
Horizontal |
12.8- 1.28 |
4.27- 0.427 |
1.28-0.128 |
0.91- 0.091 |
Vertical |
9.6-0.96 |
3.2-0.32 |
0.96-0.096 |
0.69-0.069 |
Work Distance (mm) |
40 |
46.2 |
14 |
7.1 |
 Printer Friendly Version
High-mag Zoom Microscope UWZ 285/210
Product Features
- 210mm or 285mm Long Working Distance Zoom Microscope
- Longer W.D. can achieve observing specimens being out of reach before
- Coaxial Reflecting Illumination as standard equipment can make image brighter and clearer.
- Having wide range of total magnification. (UWZ210: 42X to 588X and UWZ285: 30X to 420X)
- Total magnification on 19"monitor & 1/2 CCD camera
Item |
UWZ210 |
UWZ285 |
Zoom ratio |
14 |
Optical magnification |
0.7X to 9.8X |
0.5X to 7.0X |
W.D. |
210mm (fixing) |
285mm (fixing) |
N.A. |
0.014 to 0.093 |
0.01 to 0.067 |
Resolution (e-ray) (figuring out theoretically) |
24μm to 3.6μm |
33.5μm to 3.0μm |
Focal depth (e-ray) (figuring out theoretically) |
±1,400μm to ±31μm |
±2,750μm to ±62μm |
Field Number/objective side |
ø11.4mm to ø0.8mm |
ø16.0mm to ø1.1mm |
Field Number/viewing side |
ø8mm C-Mount (applicable to 1/2"CCD camera) |
Corrected Wave Length |
400μm to 700μm |
Illumination |
Coaxial Reflecting Illumination (standard equipment) |
Printer Friendly Version
High-mag Zoom Microscope DZ4
Zoom Ratio of 14 : DZ4 is the first TV monitor based microscope in the world that has achieved the zoom ratio of as high as 14 Total Magnification of 30x to 5880x (with 1/2 CCD and 19" monitor) (This range is obtained by use of multiple objectives/) It can provide breath-takingly high resolution. DZ4 is ideal as an image input device for image analysis system.
Application
- Semiconductors & Electronics
- Metals (Surface Finish, FO Inspection, Characters on CD, etc)
- Chemical Materials
Zoom Ratio |
14 |
Image Size |
8mm with 1/2 CCD |
Length Over All |
179.2mm (the distance between the objective attachment and C mount flange face) |
Weight |
approx. 990g |
Objectives |
ZC5 |
0.5x to 7x (30x to 420x)* |
ZC15 |
1.5x to 21x (90x to 1260x)* |
ZC50 |
5x to 70x (300x to 4200x)* |
ZC70 |
7x to 98x (420x to 5880x)* |
*Total magnification data in ( ) are based on the use of 1/2" CCD and 19" monitor.
