ESD Zoom Microscope SKZ645

Product Features

  • Stereo image with longer depth of field & Higher resolution
  • Zooming knob feature click-stops at 1x interval, Resulting to easy use & higher accuracy
  • Eyepieces inclination at 45°
  • Built-in diopter adjusting eyepiece ensuring a Comfortable viewing for every observer
  • Interpupillary distance from 52 mm – 75 mm
  • Zoom magnification : 8x – 50x
  • Zoom ratio: 6.3:1
  • Working distance : 115 mm
  • Anti-mold design
  • ESD safety

Eyepiece

Objective

Main body

With 0.5X objective

With 2X objective

0.8X - 5.0X

0.4X - 2.5X

1.6X - 10X

10X/22 mm

Total magnification

8X ~ 50X

4X ~ 25X

16X ~ 100X

Diameter of visual field(mm)

27.50 ~ 4.40

55.00 ~ 8.80

15.60 ~ 2.50

15X/16 mm

Total magnification

12X ~ 75X

6X ~ 37.50X

24X ~ 150X

Diameter of visual field(mm)

20.00 ~ 3.20

40.00 ~ 6.40

10.00 ~ 1.60

20X/12 mm

Total magnification

16X ~ 100X

8X ~ 50X

32X ~ 200X

Diameter of visual field(mm)

15.60 ~ 2.50

31.20 ~ 5.00

7.80 ~ 1.30

Working distance(mm)

115

211

43.5

Printer Friendly Version


Zoom Microscope NV

Product Features

  • Heavy cast alloy acid and reagent resistant finish
  • Eyepiece 10X, 20mm
  • Optional supplemental lenses [0.5x & 2.0x]
  • Reflected and transmitted light sources
  • Illumination: Halogen 12v-20W | Fluorescent 5W
  • NV-Trinocular available for CCD users
  • 95mm x 95mm stage
  • Optional Eyepieces: 10X (22mm), 16X (15mm), 20X (12mm), 25X (12mm)

The NV zoom microscope offers users perfect performance at an affordable price. These advanced-design zoom microscopes have the premium-grade features and image quality that you would expect from our product, including a wide field-of-view and a long working distance, a protective body glass to shield the instrument from dust particles, and both fluorescent and halogen lamps for both transmitted and reflected illumination. Mechanical design is simple yet durable for daily operation in industrial, laboratorial, and educational environments.

Eyepiece

Objective

Main body

With 0.5X objective

With 2X objective

0.65X ~ 4.5X

0.32X ~ 2.25X

1.3X ~ 9.0X

10X/20 mm

Total magnification

6.5X ~ 45X

3.2X ~ 22.5X

13X ~ 90X

Diameter of visual field(mm)

32.00 ~ 4.40

63.00 ~ 8.80

15.50 ~ 2.20

16X/15 mm

Total magnification

10.4X ~ 72X

5.1X ~ 36X

20.8X ~ 144X

Diameter of visual field(mm)

23.00 ~ 3.30

46.00 ~ 6.60

11.50 ~ 1.70

20X/12 mm

Total magnification

13X ~ 90X

6.5X ~ 45X

26X ~ 180X

Diameter of visual field(mm)

18.50 ~ 2.70

37.00 ~ 5.40

11.50 ~ 1.40

25X/12 mm

Total magnification

16.3X ~ 112.5X

8.1X ~ 56.3X

32.5X ~ 225X

Diameter of visual field(mm)

18.50 ~ 2.70

37.00 ~ 5.40

9.20 ~ 1.40

Working distance(mm)

100

170

31

Printer Friendly Version


Zoom Microscope SKZ0745

Product Features

  • Viewing head 45°inclined, 360°rotable binocular head
  • The inter-pupillary distance adjustable between 54-75mm; both dioptor adjustment of range ±5mm
  • Eyepiece : Wide field, high-eyepoint eyepiece, it can observe specimen with glasses
  • Objective : Zoom objective magnification 0.7-4.5x
  • Magnification range : between 7x-45x
  • Working distance : 100mm
  • Illuminator : Fluorescent ring illuminator system

Optical system of Seek's ’ SKZ 0745 Zoom Stereo microscope is newly, Fully coated optical system sharp and clear images with extremely good flatness an contrast.

The images are brighter and more distinct even as the periphery of the field of view. With their large zoom range and long-working distance, These are ideal for high-magnification, high-resolution observation in precision-oriented semiconductor and other industries.

Eyepiece

Objective

Main body

With 0.5X objective

With 1.5X objective

With 2X objective

0.7X ~ 4.5X

0.35X ~ 2.25X

1.05X ~ 6.75X

1.4X ~ 9X

10X/20 mm

Total magnification

7X ~ 45X

3.5X ~ 22.5X

10.5X ~ 67.5X

14X ~ 90X

Diameter of visual field(mm)

28.60 ~ 4.40

57.00 ~ 8.90

19.00 ~ 3.00

14.30 ~ 2.20

15X/15 mm

Total magnification

10.5X ~ 67.5X

5.25X ~ 33.75X

15.75X ~ 101.25X

21X ~ 135X

Diameter of visual field(mm)

21.10 ~ 3.30

42.80 ~ 6.70

14.30 ~ 2.20

10.70 ~ 1.70

20X/10 mm

Total magnification

14X ~ 90X

7X ~ 45X

21X ~ 135X

28X ~ 180X

Diameter of visual field(mm)

14.30 ~ 2.20

28.60 ~ 4.40

9.50 ~ 1.50

7.10 ~ 1.70

Working distance(mm)

100

165

45

30

Printer Friendly Version

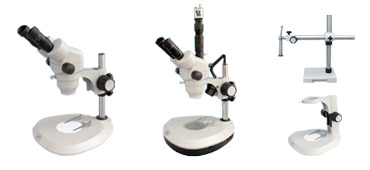

Zoom Microscope SKS0745

Product Features

  • Total magnification 7X~45X (standard outfits), extend total magnification : 270X
  • Zoom objective magnification 0.7X~4.5X, working distance 118mm.
  • With high eye point and wide field eyepiece SWH10X(23mm)
  • Binocular/ Trinocular eyetubes inclined 45°and main body can be rotated 360°
  • The range of adjusting the diopter is ±6
  • Interpupillary distance adjustment range 52mm~76mm
  • The range of adjusting the focus is 100mm(round post is 50mm), the diameter of the center working stage is 95mm
  • The measurement to match between the support and the main body is 76mm
  • The distance between the post center to the main body center is 140mm
  • The size of the round post is 25mm
  • Illuminators : the low illuminator is the transmitted illumination of the fluorescent lamp(5W),the up illuminator is the reflected illumination of the halogen lamp(6V,10W)

SKS0745 series zoom stereo microscopes have two types, SKS0745(binocular) and SKS0745T(trinocular). It is characterized by brand-new optical design, the best reproduction and true color image. It has many optional stands and attachments. It can be applied in modern biology research, semiconductor and the other science and technology industry field.

Eyepiece

Objective

Main body

With 0.5X objective

With 0.7X objective

With 1.5X objective

With 2X objective

0.7X ~ 4.5X

0.35X ~ 2.25X

0.49X ~ 3.15X

1.05X ~ 6.75X

1.4X ~ 9X

5X

Total magnification

3.5X ~ 22.5X

1.75X ~ 11.3X

2.5X ~ 15.8X

5.3X ~ 33.8X

7X ~ 45X

Diameter of visual field(mm)

32.80 ~ 5.10

65.70 ~ 10.20

46.90 ~ 7.30

21.90 ~ 3.40

16.40 ~ 2.60

10X

Total magnification

7X ~ 45X

3.5X ~ 22.5X

4.9X ~ 31.5X

10.5X ~ 67.5X

14X ~ 90X

Diameter of visual field(mm)

32.80 ~ 5.10

65.70 ~ 10.20

46.90 ~ 7.30

21.90 ~ 3.40

16.40 ~ 2.60

15X

Total magnification

10.5X ~ 67.5X

5.3X ~ 33.8X

7.4X ~ 47.2X

15.8X ~ 101.3X

21X ~ 135X

Diameter of visual field(mm)

24.30 ~ 3.80

48.60 ~ 7.60

34.70 ~ 5.40

16.20 ~ 2.50

12.10 ~ 1.90

20X

Total magnification

14X ~ 90X

7X ~ 45X

9.8X ~ 63X

21X ~ 135X

28X ~ 180X

Diameter of visual field(mm)

20.00 ~ 3.10

40.00 ~ 6.20

28.60 ~ 4.40

13.30 ~ 2.10

10.00 ~ 1.60

30X

Total magnification

21X ~ 135X

10.5X ~ 67.5X

14.7X ~ 94.5X

31.5X ~ 202.5X

42X ~ 270X

Diameter of visual field(mm)

12.90 ~ 2.00

25.70 ~ 4.00

18.40 ~ 2.90

8.60 ~ 1.60

6.40 ~ 1.00

Working distance(mm)

118

195

145

50

35

Printer Friendly Version


Zoom Microscope SKS 1065

Product Features

  • Total magnification 10X~65X(standard outfits), extend total magnification : 390X
  • Zoom objective magnification 1.0X~6.5X, working distance 118mm
  • With high eye point and wide field eyepiece SWH10X(23mm)
  • Binocular/ Trinocular eyetubes inclined 45°and main body can be rotated 360°
  • The range of adjusting the diopter is ±6
  • Interpupillary distance adjustment range 52mm~76mm
  • The range of adjusting the focus is 100mm(round post is 50mm), the diameter of the center working stage is 95mm
  • The measurement to match between the support and the main body is 76mm
  • The distance between the post center to the main body center is 140mm
  • The size of the round post is 25mm
  • Illuminators : the low illuminator is the transmitted illumination of the fluorescent lamp(5W),the up illuminator is the reflected illumination of the halogen lamp(6V, 10W)

SKS series zoom stereo microscopes have three types, SKS1065(binocular) and SKS1065T(trinocular). It is characterized by unique optical design, large depth and width of visual fields, long working distance. It has many optional stands and attachments. It can be applied in modern biology research, semiconductor and the other science and technology industry field. SKS1065C zoom stereo microscope with built-in coaxial illumination for observation micro-surface in integrated circuit, metal parts, semiconductor etc.

Eyepiece

Objective

Main body

With 0.5X objective

With 0.7X objective

With 1.5X objective

With 2X objective

1X ~ 6.5X

0.5X ~ 3.3X

0.7X ~ 4.6X

1.5X ~ 9.8X

2X ~ 13X

5X

Total magnification

5X ~ 32.5X

2.5X ~16.3X

3.5X ~ 22.8X

7.5X ~ 48.8X

10X ~ 65X

Diameter of visual field(mm)

23.00 ~ 3.50

46.00 ~ 7.00

32.90 ~ 5.00

15.30 ~ 2.30

11.50 ~ 1.80

10X

Total magnification

10X ~ 65X

5X ~ 32.5X

7X ~ 46X

15X ~ 98X

20X ~ 130X

Diameter of visual field(mm)

23.00 ~ 3.50

46.00 ~ 7.00

32.90 ~ 5.00

15.30 ~ 2.30

11.50 ~ 1.80

15X

Total magnification

15X ~ 97.5X

7.5X~48.8X

10.5X ~ 9X

22.5X ~ 147X

30X ~ 195X

Diameter of visual field(mm)

17.00 ~ 2.60

34.00 ~ 5.20

24.30 ~ 3.70

11.30 ~ 1.70

8.50 ~ 1.30

20X

Total magnification

20X ~ 130X

10X ~ 65X

14X ~ 92X

30X ~ 196X

40X ~ 260X

Diameter of visual field(mm)

14.00 ~ 2.00

28.00 ~ 4.20

20.00 ~ 3.10

9.30 ~ 1.40

7.00 ~ 1.10

30X

Total magnification

30X ~ 195X

15X ~ 97.5X

21X ~ 138X

45X ~ 294X

60X ~ 390X

Diameter of visual field(mm)

9.00 ~ 1.40

18.00 ~ 2.70

12.90 ~ 2.00

6.00 ~ 0.90

4.50 ~ 0.70

Working distance(mm)

118

200

145

50

35
