Dual Stereo Microscope PXS-VI
Product Features
- Heavy cast alloy acid and reagent resistant finish
- Eyepiece WF 10X, 22mm
- Objective
MAGNIFICATION |
FIELD OF VIEW (MM) |
WORKING DISTANCE (MM) |
1X |
22 |
110 |
2X |
11 |
110 |
3X |
7.0 |
110 |
4X |
5.5 |
110 |
The new PXS-VI stereo microscope offers users perfect performance at an affordable price. These advanced-design stereo microscopes have the features and image quality you expect from our product, including a wide field-of-view and a long working distance of 100mm., as well as a protective body glass to shield the instrument from dust particles, and both fluorescent and halogen lamps to provide both transmitted and reflected illumination. Mechanical design is simple yet durable for daily operations in industrial, laboratorial, and educational environments. All controls are easy to use. It is suitable for examining, assembling, welding and repairing.
HEAD |
Binocular |
EYEPIECE |
WF10X / 22mm |
STAND RANGE |
Adjustable Range for Stand: 100mm |
FOCUSING RANGE |
43mm |
DISTANCE |
Interpupillary Distance Range of Binocular: 55mm – 75mm |
OPTION |
WF 16X, WF 10X, WF 25X Eyepiece 0.5X, 2X accessory lens | Fluorescent ring light |
ILLUMINATION |
Top Halogen illumination 12V /20W | Bottom fluorescent lamp |
 Printer Friendly Version

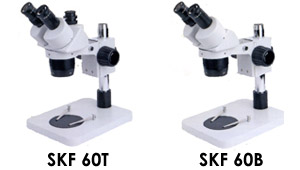

Dual Stereo Microscope SKF 60 Series
SKF60 series is an industrial grade, dual Magnification Stereo microscope. The Fluorescent mini ring light offers shadow-free illumination. Microscope head inclined 45, rotate 360, interpupillary distance 55-75 mm With eyepiece dioptor adjustment. We provide trinocular with light-path Selectable supply with c-mount TV Adaptor for monitoring equipment too. The SKF60 series is an economical choice where superior optical quality is a must, but zoom capability is not required.
Model |
SKF6012 |
SKF6013 |
SKF6024 |
Eyepiece |
WF10x |
WF10x |
WF10x |
Objective |
1x, 2x |
1x, 3x |
2x, 4x |
Magnification |
10x, 20x |
10x, 30x |
20x, 40x |
Working distance (mm) |
100 |
100 |
100 |
Printer Friendly Version
Dual Stereo Microscope SKF 70 Series
SKF70 series is an newest dual Magnification Stereo microscope with changeable knob design. SKF 70series is an industrial grade, dual Magnification Stereo microscope. The Fluorescent mini ring light offers shadow-free illumination. Microscope head inclined 45, rotate 360, interpupillary distance 55-75 mm With eyepiece dioptor adjustment. The SKF70 series is an economical choice where superior optical quality is a must, but zoom capability is not required.
Model |
SKF7012 |
SKF7013 |
SKF7024 |
Eyepiece |
WF10x |
WF10x |
WF10x |
Objective |
1x, 2x |
1x, 3x |
2x, 4x |
Magnification |
10x, 20x |
10x, 30x |
20x, 40x |
Working distance (mm) |
100 |
100 |
100 |
